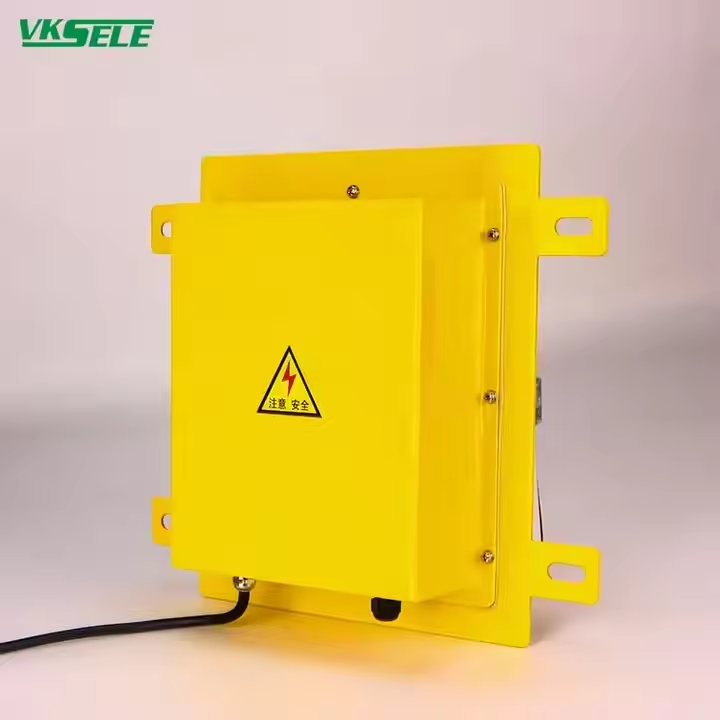

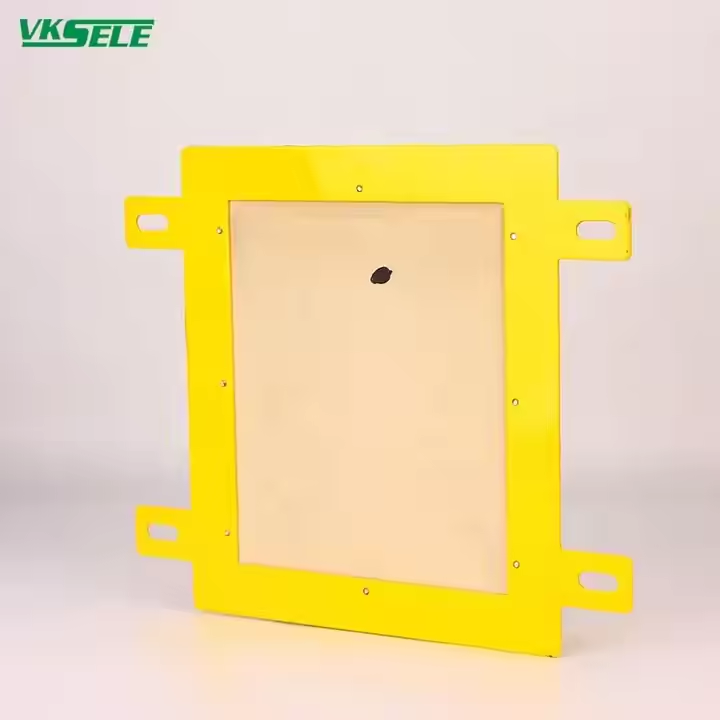

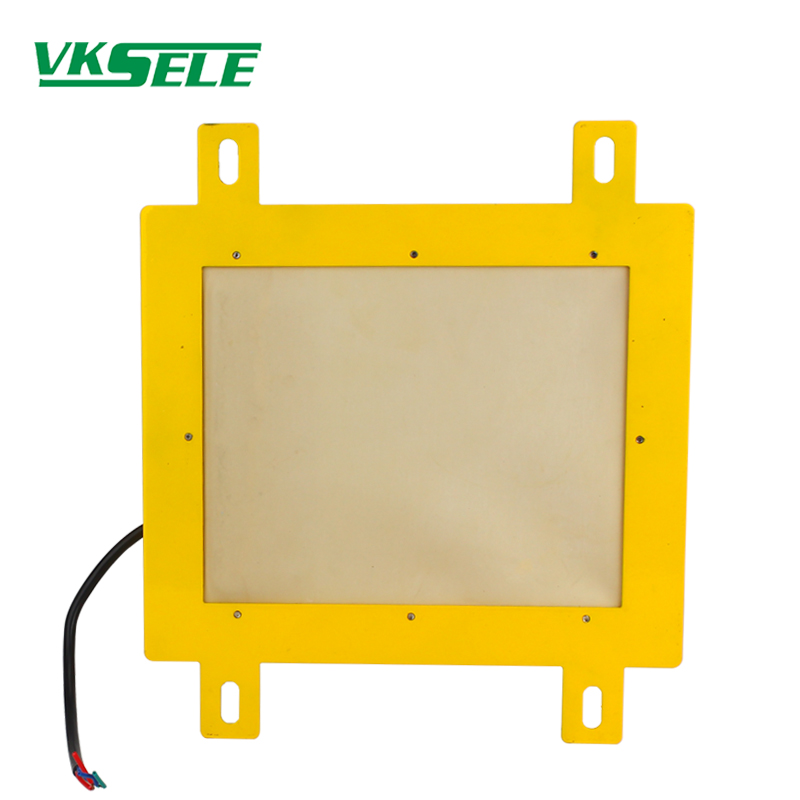

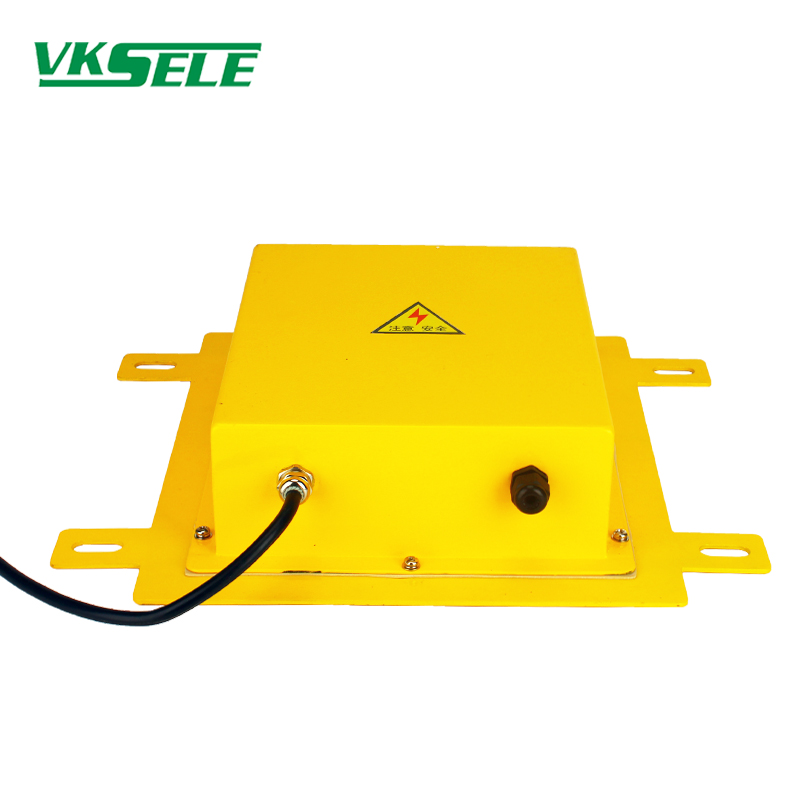

Square Chute Blockage Switch
Working principle:
1. The detector adopts the pressure measuring activity structure, after troubleshooting, the thrust of the pressure spring makes it automatically reset.
2. High-performance micro switch is used in the machine, the action is flexible, high reliability.
3. Small size, easy to install.
Installation and use:
Installed on the vertical sympathetic wall of the slot which is not directly impacted by the moving material.Product can be divided into two groups,
installation height according to user needs, generally installed in the bottom of the chute in the upper third of the height is appropriate.ihe produdt
can also be used in two groups of four, one group is installed on the side wall of the chute at a relative heigh!tnf ngnthird from the bottom, as a light
blockage detection, used to receive the signal from the grasping device, when the chute is blocked, the signal is received by the moving device and
starts to vibrate, the other group is installed at the bottom two-thirds, as a heavy blockage detection output stop signal when blockage occurs.
Technical indicators:
| Item | Parameters |
| Model | Chute Blockage Switch |
| Ambient temperature | -20℃-+40℃ |
| Relative humidity | ≥85% |
| Movement Angle | 5° |
| Limit Angle | 10° |
| Number of contacts | 1NO1NC |
| Contact Capacity | AC380V 5A |
