Working principle:

When an emergency occurs at the tape transport site, the wire rope tied to the lug of the pull rope switch can be pulled to control the internal micro-switch action and signal a stop or alarm. The automatic reset model automatically resets when the wire rope is released,

while the manual reset model can only be reset after the reset handle is operated.

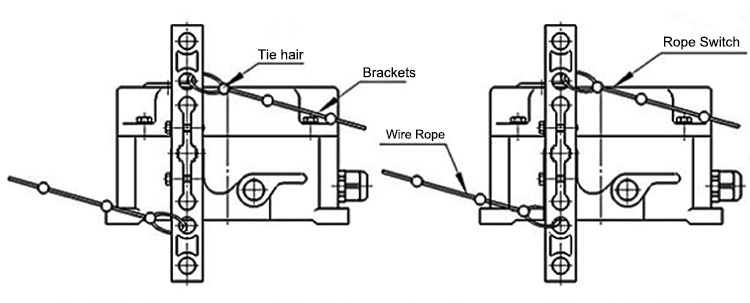

Installation and use:

The switch is balanced on the fixing bracket of the frame;

Tie the wire rope to the pull rings at each end, not exceeding 30 metres on each side

 (to be shortened if there is a gradient);

The rope pressure should be suitable to ensure the reliable reset of the switch;

The pulling rope is arranged in the parallel direction of the tape, and a lifting ring is added every 10 meters;

Technical indicators:
