Zhejiang Weikesen Power Technology Co.,Ltd.

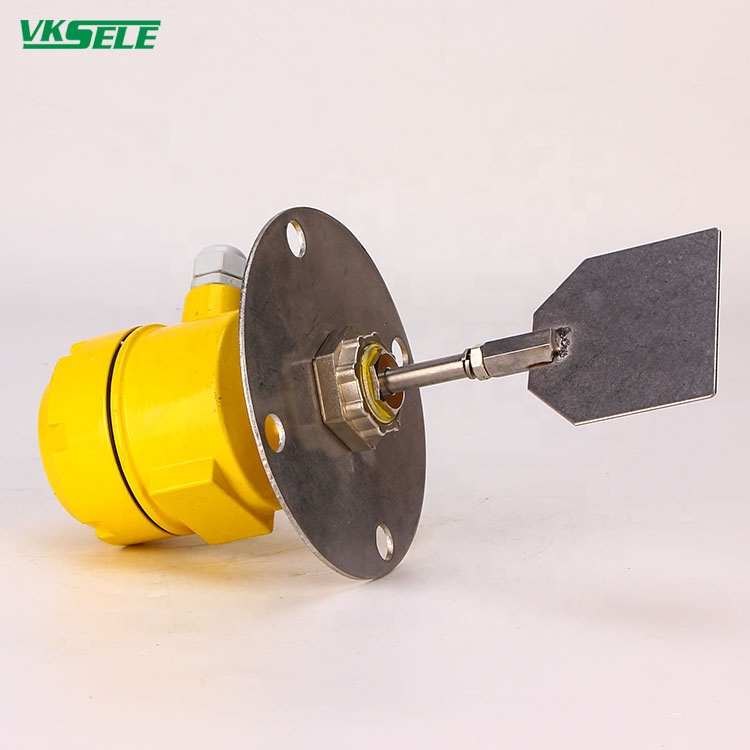

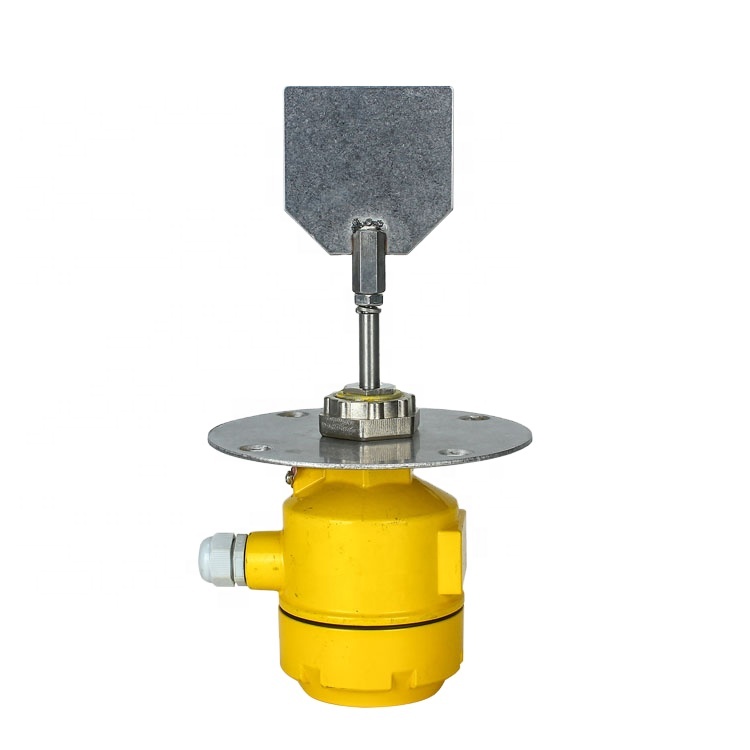

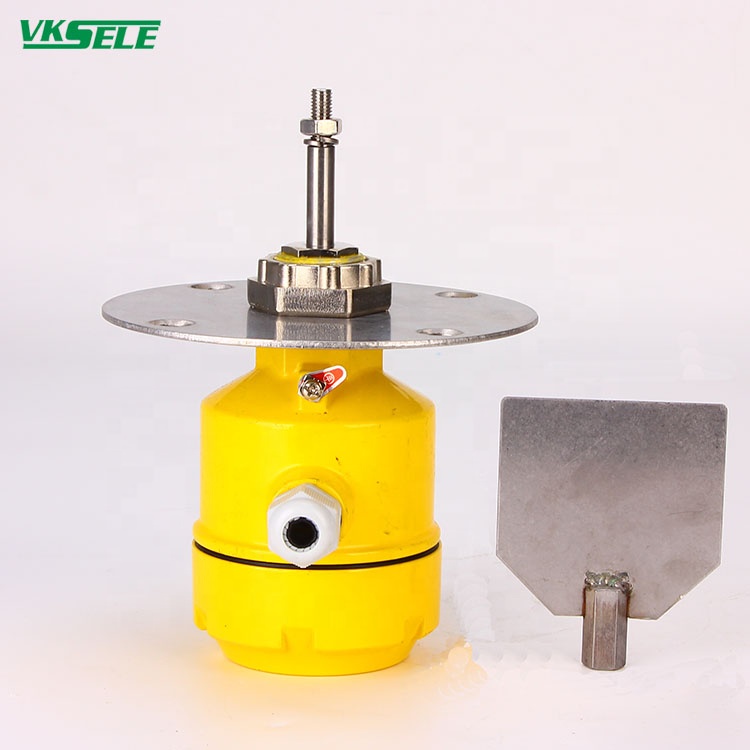

WKSZX Type Rotary Level Detectors

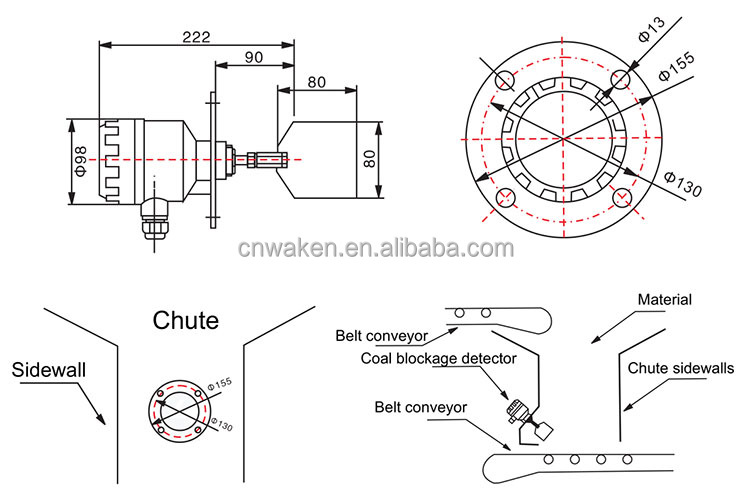

Installation and use:
1. Installed on the vertical side wall of the chute which is not directly impacted by the material.
2.The product can be divided into two groups, the installation height according to user needs, generally installed in the bottom of the chute up two-thirds of the height is appropriate.
3. The machine can also be used in two groups of four, one group is installed on the side wall of the chute from the bottom to a third of the relative height, as a light blockage detection. It is used to receive the signal from the vibrating device, when the chute is blocked, the vibrating device will start to vibrate after receiving the signal.
4.The other group is installed at the bottom third of this two, as a heavy blockage detection, when blockage occurs, the output stop signal: if necessary, please strengthen the protective plate above the blade.
Technical indicators:
| Item | Parameters |
| Model | Rotary Level Detectors |
| Voltage | AC220V |
| Power consumption | 3W |
| Contact capacity | AC380V 5A |
| No. of blade revolutions | 1 Rev/min |
| Ambient Temperature | -30-+75℃ |
| Protection level | IP65 |
| Output signal | 1NO 1NC |
