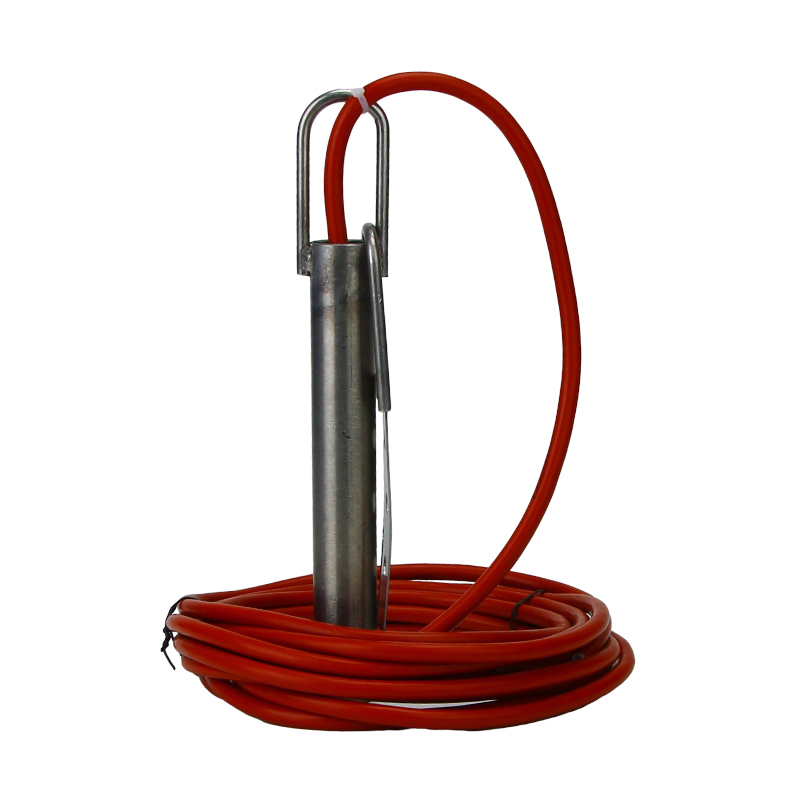

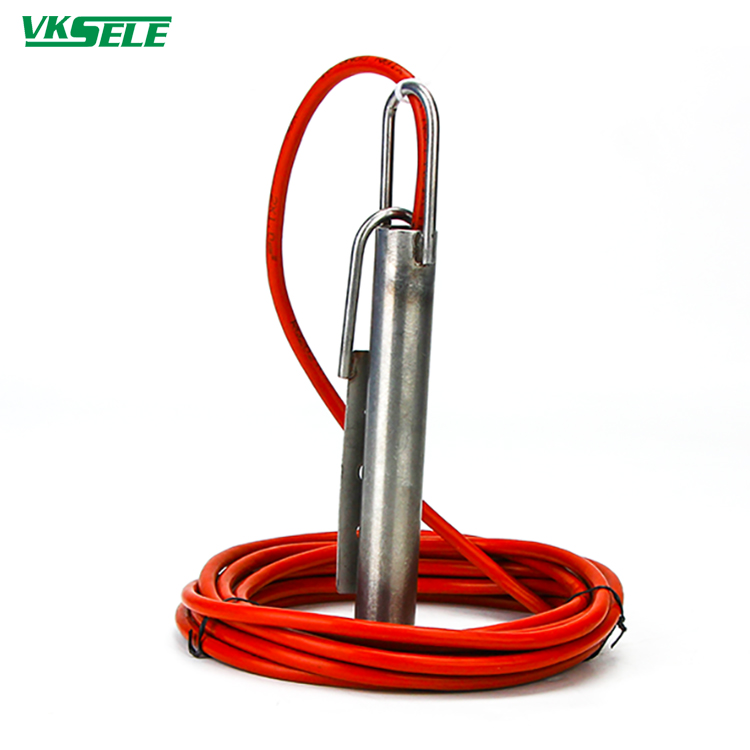

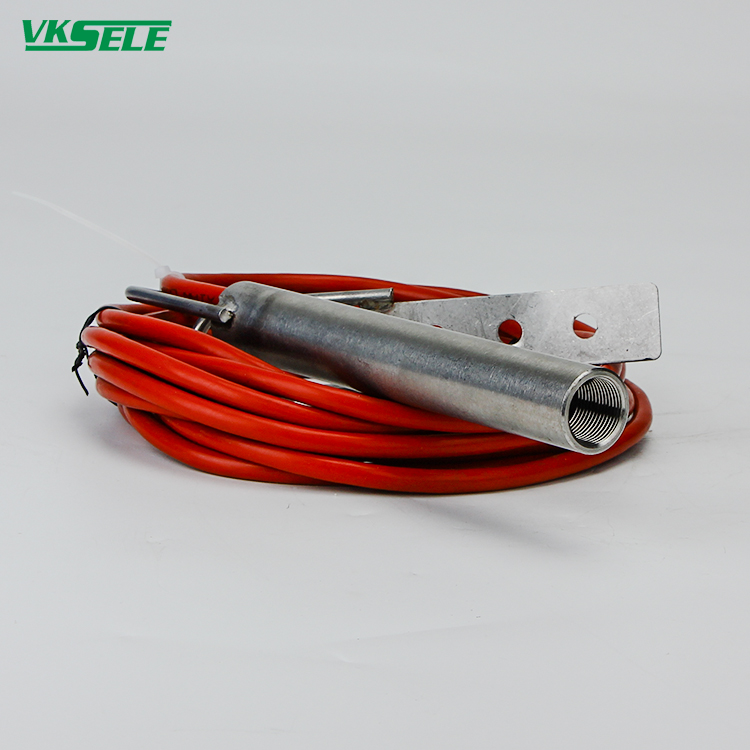

Stainless Steel Tilt Switch
High and low level detector, also known as tilt switch, is a simple structure, easy to use, safe and reliable material flow, material level detector, easy to install, strong and corrosion resistant. Uses: Widely used in chute coal pipe switch clogging detection, round coal bunker height alarm and stacker-reclaimer coal heap detection, tipper unloading probe, etc.
Working principle:
When the vertical suspension tilt switch is subjected to external force and deviates from the vertical position by more than 15 degrees, the contact inside the switch acts, and the normally closed contact is opened (or the normally open contact is closed). When the external force is withdrawn, the tilt switch returns to the vertical state and the contacts are reset and closed (or open). Use the change of the opening and closing of the inner contact of the tilt switch to judge the working condition of the equipment, so as to take timely measures to protect the equipment.
Technical indicators:
| Item | Parameters |
| Model | Stainless Steel Tilt Switches |
| Ambient temperature | -20℃-+100℃ (Accept customize 200℃) |
| Shell material | Stainless Steel |
| Contact capacity | AC220V |

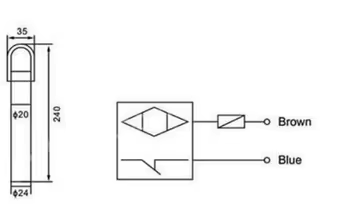

| Probe length | 180mm |
| Total length of probe | 210mm |
| Tail thread | M20*1.5*50 |
| Operating voltage | 12-24VAC/DC |
| Tilt angle | 25° |
