Zhejiang Weikesen Power Technology Co.,Ltd.
Slip switch DH- II
Product Details:
1. Durable material
The shell is made of die-cast aluminium alloy, which is corrosion and moisture resistant and durable.
2. Fully functional
Also available for chain start and stop of multiple belt conveyors.
3. Good performance
Easy to install, installed on top of the return tape, the whole machine runs smoothly.
4. Safe and durable
The surface adopts electrostatic spraying and coating technology, the paint film is even and strong.
Product features:
1. Easy to install, safe to use
2. Uniform paint film, strong adhesion

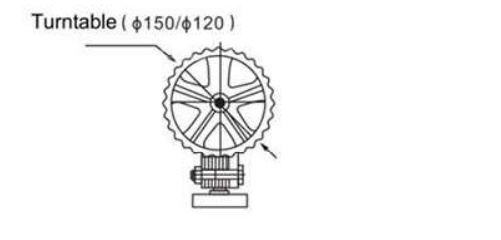

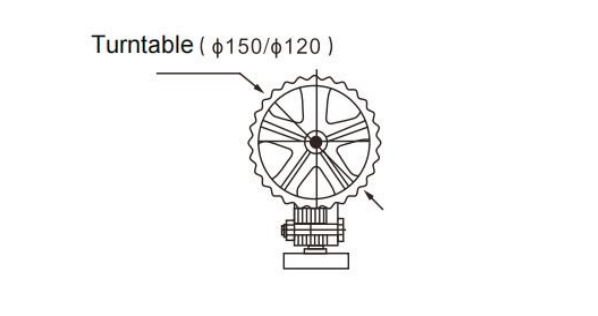

3. Long service life Turntable(φ150/120)
4.High protection level of the whole machine, up to IP66
5. Suitable for working under harsh conditions
6. wide range of applications
Technical indicators:
| Item | Parameters |
| Model | Slip switch II |
| Ambient temperature | -20℃-+60℃ |
| Operating temperature | -30℃-+70℃ |
| Relative humidity | ≥80% |
| Number of contacts | 1NO 1NC |
| Belt speed | 0.8-4m/scustomize |
| Working voltage | AC220V 50Hz |
| Output Type | Dry contact output AC 380V 5A or DC 12-50V 5A as the output is a solid state relay, specify for DC or AC conditions(for negative or inductive loads) |
