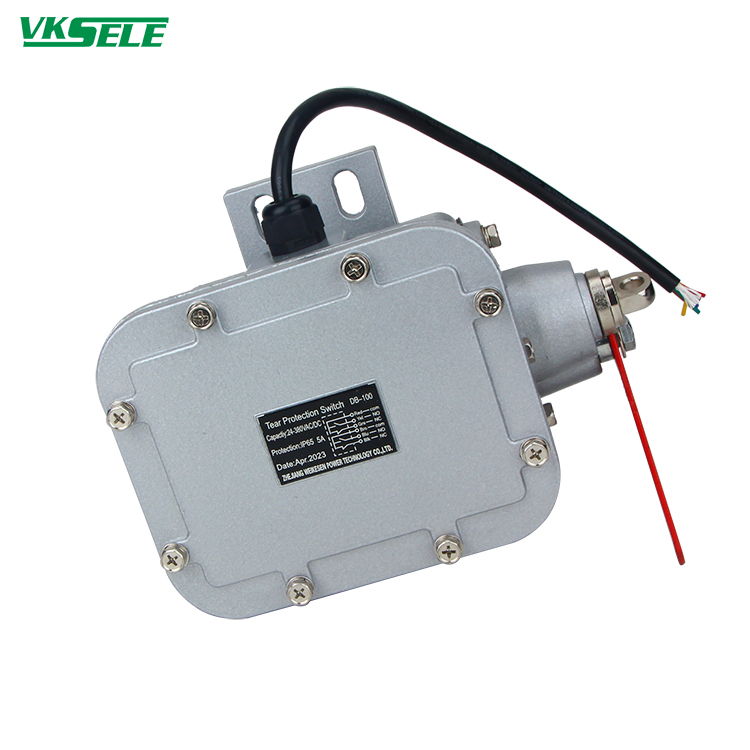

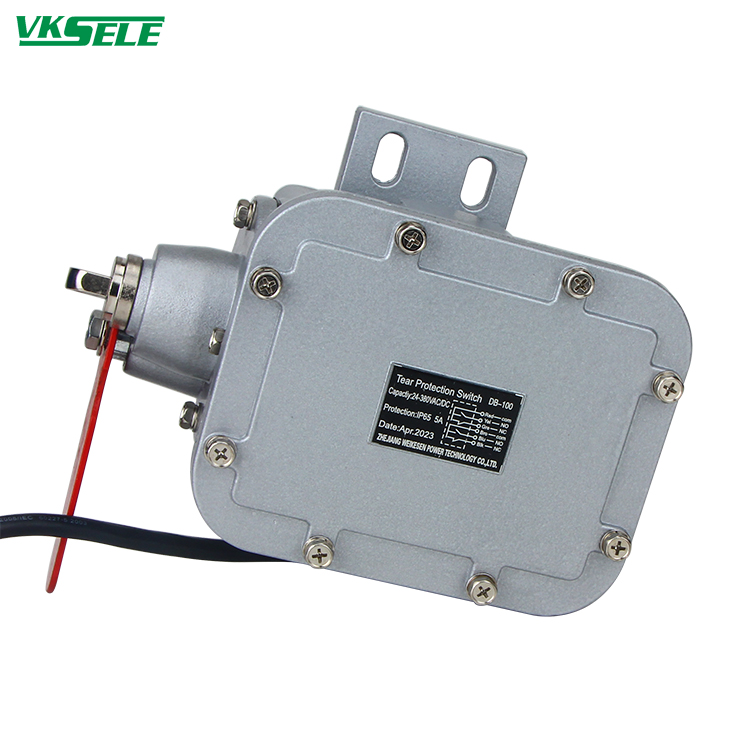

Manual Longitudinal Tear Switch (Gray)
Slit switches provide an alarm signal to the monitor or shut down the conveyor in case of tears, punctures, damaged junctions or sharp objects protruding from the belt.
Working principle:

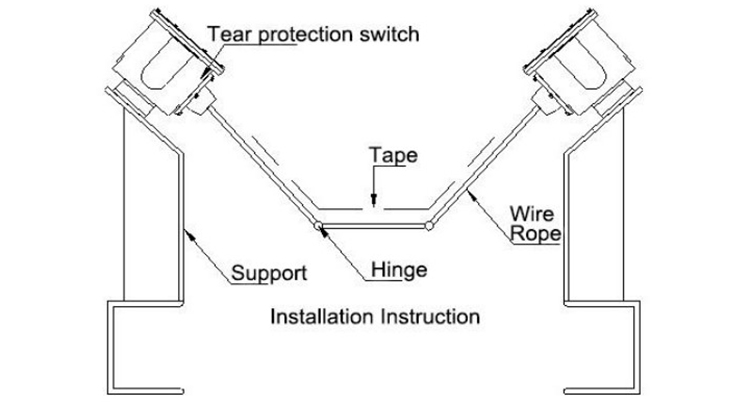

The rip switches are mounted in pairs on both sides of the conveyor belt. They are connected by two sections of wire rope. One end of the wire rope is fixed to the support bracket and the other end is attached to the pull ring of the rip switch. The two sections of wire rope form a monitoring surface under the conveyor belt. When an object or torn belt is suspended down and swept down to the wire rope, the wire rope pulls the tear switch pull ring to make it move and the tear switch sends out an alarm or stop signal.
Technical indicators:
| Item | Parameters |
| Model | Tear Switch |
| Ambient temperature | -30℃-+60℃ |
| Relative humidity | ≥85% |
| Movement Power | 5 KG |
| Ultimate Stroke | 25mm |
| Action Stroke | 20mm |

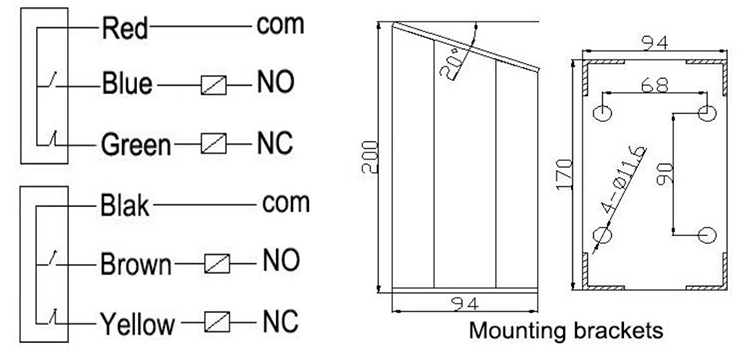

| Number of contacts | 2 Micro switch |
| Contact Capacity | AC380V 5A |
| Reset mode | Automatic Reset |
